Features

Specifications

Application: Hydraulic Pipe

Alloy Or Not: Non-Alloy

Section Shape: Round

Special Pipe: Honed Tube

Outer Diameter: 10 - 1219 Mm

Thickness: 1 - 100 Mm

Standard: API, ASTM, JIS, API 5L, ASTM A210-1996, ASTM A358-2005, JIS G3458-2005, JIS G3429

Grade: 16mn, 15MnV, 16mn, Mn-V Alloy

Surface Treatment: Other

Tolerance: H7 H8 H9

Processing Service: Cutting, Honing

Secondary Or Not: Non-secondary

Technique: Cold Drawn

Certification: API

Type: Cold Drawn Honed Tube

Basic Infomation

Certification: API

Payment & Shipping Terms

Packaging Details: seaworthy packing, in bundles, worth wooden cases, standard packing or up to your requirement.

Supply Ability: 500 Ton/Tons per Quarter

Product Description

Description:

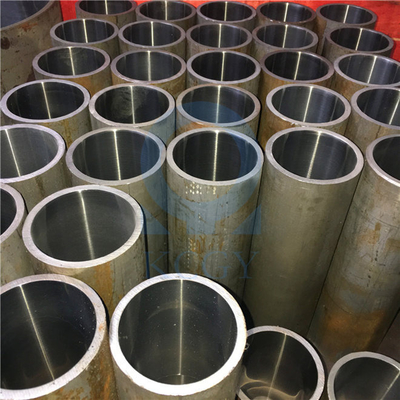

Our honed tube is produced using our Suitable To Hone Drawn Over Mandrel (DOM) and Cold Drawn Seamless CDS. This honed tube is ready to use for hydraulic cylinder applications without further ID processing.
The honing process involves using abrasive polishing stones and abrasive paper to remove small amounts of material, to produce extremely precise ID dimensions and improved finishes.

Applications:

Hydraulic Cylinder, Hydraulic Jack, hydraulic oil cylinder pneumatic cylinder, petrifaction oil pump, coal mine, engineering machinery, crane and transport machinery, auto transmission axes, plastic machinery, engineering machinery, crane and transport machinery, auto transmission axes, plastic machinery, hydraulic oil cylinder, pneumatic cylinder, absorber, spin printing and dyeing.

Quality Standards:

DIN 2391 Seamless Precison Steel Tubes
EN10305 Steel Tubes for Precision Applications Seamless Cold Drawn Tubes
ASTM A519 Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing
JIS G3445 Carbon Steel Tubes for Machine Structural Purposes

Steel Grades:

ST52 ST45 E355 1020 1026

Chemical Composition(%):

[custom_table]

Grade	C	Si	Mn	P	S	Cr	Mo
St 45 (DIN1.0408)	0.21 max	0.35 max	0.40 min	0.025 max	0.025 max	/	/
St 52 (DIN1.0580)	0.22 max	0.55 max	1.60 max	0.025 max	0.025 max	/	/
E355	0.22 max	0.55 max	1.60 max	0.025 max	0.025 max	/	/
1020	0.18-0.25	/	0.30-0.60	0.040 max	0.050 max	/	/
1026	0.22-0.28	/	0.60-0.90	0.040 max	0.050 max	/	/

Mechanical Properties( T=20°C if not differently stated ):

Grades	Delivery Conditions	Tensile Strength Rm (Mpa)	Elongation in the longitudinal direction Al (%)
St 45	+A (GBK)	390 min	21 min
St 52	+A (GBK)	490 min	22 min
E355	+A (GBK)	450 min	/	22 min
1020	+A (GBK)	390 min	/	21 min

Process:

Raw materials- Cold drawn/rolled- Heat treatment (BKS)- Honed or SRB- packing.

Product Advantages:

1. Roughness(Ra) can be 0.08µm or less.
2. Ovality can be 0.01 mm or less.
3, Hardness can be HV4° or higher.

Dimension Tolerance:

Processing Way	Cylinder Barrel ID (mm)	Max Length (mtr)	Straightness (mm/mtr)	ID Tolerance	Wall Thickness Tolerance (mm)	ID Roughness (μm)
Cold Drawn	40-320	12	0.2-0.5	H8-H10	±5%	0.8-1.6
Cold Rolled	12-100	12	0.2-0.5	H8-H10	±5%	0.8-1.2
Cold Drawn+Honed	40-500	8	0.2-0.3	H7-H9	±5%	0.2-0.8
Cold Drawn-SRB	40-400	7	0.2-0.3	H8-H9	± 5%	0.2-0.4
Deepth Drilling-Honed	320-1100	8	0.2-0.3	H7-H9	±8%	0.2-0.8
Deepth Drilling-SRB	320-600	7	0.2-0.3	H8-H9	±8%	0.2-0.4

Size Range:

Inner Diameter: 12-1100mm
Wall Thickness: 2~55mm
Max Length: 12 meters

Package:

1. Bundle Packing.
2. Plain end or vanished as per customer’s request.
3. Wrapped in waterproof paper.
4. Sackcloth with several steel strips.
5. Pack in heavy tri-wall boxes.

Mill Test Certificate:

MTC is issued in accordance with EN 10204.
